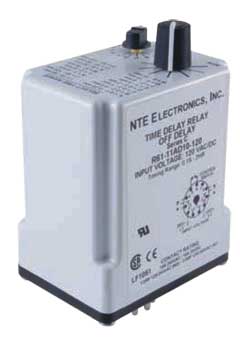

Programmable Time Delay Relays, R61 Series

Features 16 Time Ranges in a Single Timer User Sets Time Ranges (No Math - Just Flip Switches Instructions right on Unit Fine Tune Knob for Precision Timing Pin for Pin Interchangable with Timers in the Field - No Rewiring AC or DC Operation CMOS Digital Circuitry - 0.5% Repeatable Accuracy

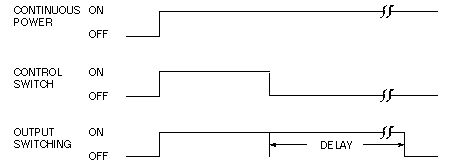

DELAY ON RELEASE - Input voltage must be applied continuously to operate the internal relay. When the control switch is closed, the relay energizes. When the control switch is opened, timing begins. When timing is complete, the relay will de-energize. Time may be reset to zero during timing by closing the control switch.

Electrical Characteristics

Contact
Contact Rating: 10 Amps 240VAC or less, 1/3 HP, 240VAC or 120VAC, Pilot Duty 345VA, 120VAC or 240VAC, 50/60Hz
Life: 500,000 operations at full load
Mechanical Life: 7,000,000 operations at no load

Input
Nominal Input Voltages: See Chart
Steady State Input Current: See Chart

Timing
Timing Adjustment Modes Available: See Timing Range Chart

Repeat Accuracy
±0.5% - after established at steady temperature (4 hours)
Percent Timing Range over Temperature & Voltage Range: ±10%
Timing Tolerance at High End of Range: -0, +10%

Timing Tolerance at Low End of Range: +0, -50%

Reset Time: 60mS Typ

Protection
Transient: Surge Test 10,000V for 20mS
Dielectric Breakdown:
     Coil To Contact: 18500 VAC
     Across Open Contact: 1850 VAC

Environmental Characteristics
Operating: -20°C to +55°C

Weight
Std: 4.5 ozs. (130 grams) - approx

Back to Top

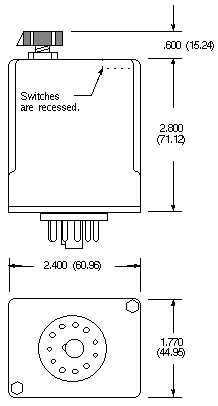

Dimensional Drawings

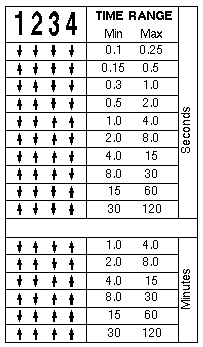

D36                                              Timing Range Chart

Contact Arrangment

DPDT, 2 Form "C"

Timing

Back to Top

Part Numbers

AC or DC OPERATED
NTE Type No.	Nom. Volt.	Contact Arr.	Input Cur. Nom.	Max. Contact Cur, @ 28VDC or 120VAC	Diag. No.
R61-11AD10-12	12VAC/DC	DPDT	167mA	10A	D36
R61-11AD10-24	24VAC/DC	DPDT	83mA	10A	D36
R61-11AD10-120	120VAC/DC	DPDT	17mA	10A	D36

ACCESSORIES
Mounting Styles	Description	NTE Type No.
Surface Mount	11-Pin Octal	R95-104
Panel Mount	11-Pin Octal	R95-119
DIN Rail Mount	11-Pin Octal	R95-114
	11-Pin Octal	R95-182
