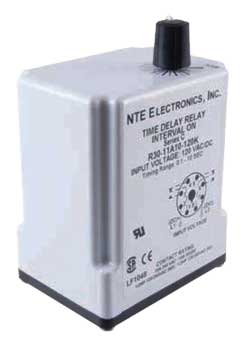

Time Delay Relays, R30 Series

Features ±0.1% Repeatability 8-Pin octal base Knob with calibrated scale 3-timing ranges Impact proof dust cover IC hybrid circuitry for timing

INTERVAL ON - The relay will operate immediately when the input voltage is applied. At the end of an adjustable interval the relay will release and remain in this state until re-application of the input voltage.

Electrical Characteristics

Contact
Contact Rating: 10 Amps 120 VAC, 30 VDC-8 Amp, 1/2 HP @ 240 VAC, 1/3 HP @ 120 VAC
Life: 500,000 operations @ 120 VAC, 10A resistive
1,000,000 operations @ 120 VAC, 5A resistive
2,000,000 operations @ 120 VAC, 2A resistive
Mechanical Life: 50,000,000 operations

Input
Nominal Input Voltages: See Chart
Steady State Input Current: See Chart

Timing
Timing Adjustment Modes Available:
     0.1 to 10 sec (K-suffix)      1.0 to 180 sec (L-suffix)      2.0 to 300 sec (M-suffix)

Repeat Accuracy
±0.1% - constant voltage & temperature
Percent Timing Range over Temperature & Voltage Range: ±10%
Timing Tolerance at High End of Range: -0, +40%

Timing Tolerance at Low End of Range: +0, -40%

Reset Time: 100mS Max

Protection
Transient: UL508 surge test 5000V for 50mS
Dielectric Breakdown:
     Coil To Contact: 1500 VAC
     Across Open Contact: 1000 VAC
     Noise Immunity: NEMA ICS 2-230 2500 VAC

Environmental Characteristics
Operating: -20°C to +55°C
Storage: -55°C to +85°C

Weight
Std: 4 ozs. (115 grams) - approx

Back to Top

Dimensional Drawings

D16

Contact Arrangment

DPDT, 2 Form "C"

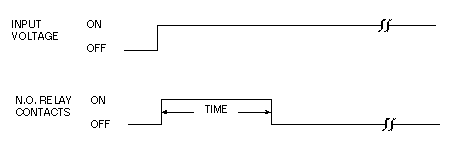

Timing

Back to Top

Part Numbers

NTE Type No.	Nom. Volt.	Contact Arr.	Input Cur. Nom.	Max. Contact Cur, @ 28VDC or 120VAC	Diag. No.
AC OPERATED
R30-11A10-10K	120VAC	DPDT	20mA	10A	D16
R30-11A10-120L	120VAC	DPDT	20mA	10A	D16
R30-11A10-120M	120VAC	DPDT	20mA	10A	D16
DC OPERATED
R30-11D10-24K	24VDC	DPDT	40mA	10A	D16
R30-11D10-24L	24VDC	DPDT	40mA	10A	D16

ACCESSORIES
Mounting Styles	Description	NTE Type No.
Surface Mount	8-Pin Octal	R95-101
Panel Mount	8-Pin Octal	R95-118
DIN Rail Mount	8-Pin Octal	R95-113
	8-Pin Octal	R95-181
